| Prestanda | |
| CPU | 3rd Generation Intel® Quad-Core i7-3610QE 2.3GHz / 3.3GHz in Turbo mode |
| RAM | 4GB DDR3 SODIMM (max. 16GB) |
| HDD | 500GB Industrial Hard Disk |
| Externally access CFast slot | 1 |
| Gränssnitt | |
| Ethernet-port | 2 x 10/100/1000 Mbit |
| USB port | 2 x USB 2.0 / 4 x USB 3.0 |
| Serieport | 3 x RS232, 1 x RS232/422/485 |
| Extern skärmport | VGA / HDMI / DVI-D / Display Ports (2x) |
| Audio Ports | Mic / Line-in / Line-out |
| Mini PCIe | 0 |
| Matning | |
| Matningsspänning | 6 till 36 VDC |
| Miljöförhållanden | |
| Driftstemperatur | 0 till 60 ° C |
| Förvaringstemperatur | -40 Till 85° C |
| Godkänd för | FCC/CE Class certified |
| Skyddsklass | IP50 |
| Vibration | 5G RMS @ 5 – 500Hz according till IEC68-2-64 |
| Shock | 50 Grms, half-sine 11 ms duration (w/SSD, According till IEC60068-2-27) |
| Dimensioner | |
| Mål BxDxH | 260 x 175 x 79 mm |

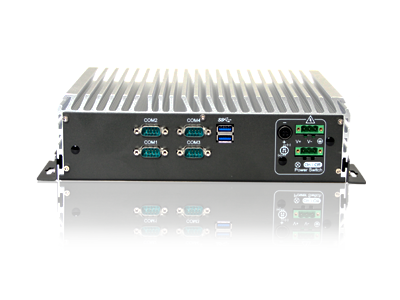

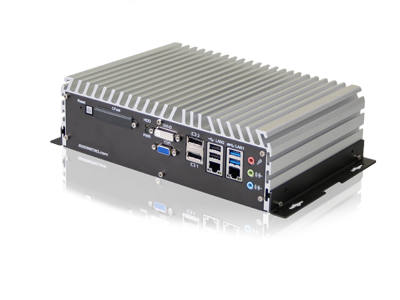

Box-PC, PCI, i7 2.3 GHz
The solid metal housing of the IMM-V47S provides dust resistance and superior protection from EMI.
The IMM-V47S offers four serial communication ports, 6 USB ports and 2 Gigabit LAN ports.
The system offers plenty processing power through its 3 rd generation Intel ® Quad-Core i7™ 2.3GHz processor.
These features, along with its 6~36VDC power input, make the IMM-V47S an ideal control system för industrial
automation applications.
