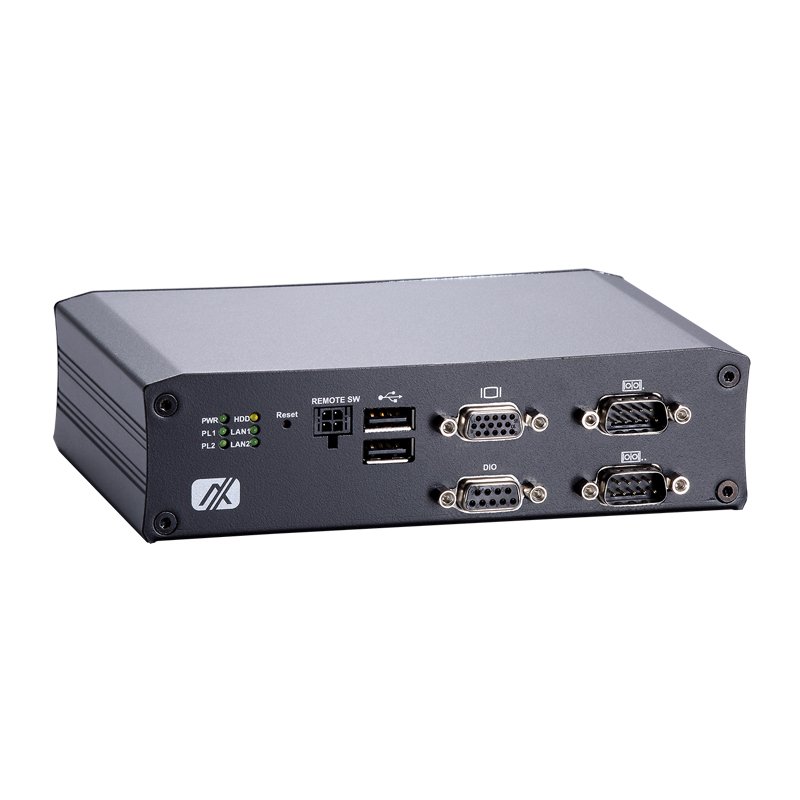

BOX PC, E3827 1.75GHz Marin DNVGL

Box-PC med 2 kärnig 1,75 GHz, IEC60945 och DNV GL

Artikelnr: tBOX810-838-FL-E3827 Kategori:

Beskrivning

CPU



  • Intel® Atom processor E3827 (2C@1.75 GHz)
Chipset

  • SoC integrated
System Memory

  • DDR3L-1333 4 GB memory onboard
BIOS

  • AMI
COM

  • 2 x RS-232/422/485
USB

  • 2 x USB 2.0
Ethernet

  • Option #1: 2 x M12 A-coded GbE LAN
  • Option #2: 2 x RJ-45 GbE LAN
Display

  • 1 x VGA
CANbus

  • N/A
Digital I/O

  • 1 x DI/DO (8-bit programmable)
Audio

  • Mic-in/Line-out
Storage

  • 1 x 2.5″ SATA (9.5 mm)
  • 1 x mSATA
Expansion

  • 2 x Full-size PCI Express Mini Card slot (one supports mSATA)
  • 1 x SIM card socket
Others

  • 4 x antenna opening
Power Supply

  • Power input: 9 ~ 36VDC typical: 12/24VDC
Power Consumption

  • N/A
Watchdog Timer

  • 255 levels, 0 ~ 255 sec./min.
Construction

  • Aluminum extrusion and heavy-duty steel
Operating Temperature

  • -40°C ~ +70°C (-40°F ~ +158°F) with W.T. SSD
  • -25°C ~ +55°C (-13°F ~ +131°F) with W.T. HDD
Relative Humidity

  • 5% ~ 95%, non-condensing
Vibration

  • 3 Grms w/ SSD (5-500Hz, X, Y, Z direction; random)
  • 0.8 Grms w/ HDD (5-500Hz, X, Y, Z direction; random)
Shock

  • Comply EN 61373 section 10 table 3 category 1 class A and class B up till 5Grms (30ms, ±X/Y/Z direction)
Dimensions
(W x D x H)

  • 163.8 x 108 x 44 mm (6.44″ x 4.25” x 1.73”)
Weight (net/gross)

  • 0.77 kg (1.69 lb)/ TBC
Certifications

  • CE (Class A), EN50155, EN50121, eMark, ISO7637, IEC60945 certificated
EOS

  • WE8S, WES 7, Linux
Mounting

  • DIN rail
  • Wall mount
