| Prestanda | |
| CPU | Intel Core i3-3217UE (1,6GHZ) |
| RAM | 4 GB |
| HDD | 320 GB HDD (2xRemoveable Sata) RAID 0/1 |
| Digitala IO | 8 Opto isolerade |
| Gränssnitt | |
| Ethernet-port | 4 x 10/100/1000 Mbit |
| USB port | 2 x USB 2.0 2 x USB 3.0 |
| Serieport | 3 x RS232/422/485, 1 CAN bus (Opto isolerade) |
| Extern skärmport | 1 x VGA, 1 x DVI-D |
| PCI | 0 |
| Mini PCIe | 3 + 1 x SIM slots |
| Matning | |
| Matningsspänning | 10 till 35 VDC |
| Miljöförhållanden | |
| Driftstemperatur | -40 till 70 ° C |
| Förvaringstemperatur | -40 Till 80° C |
| Godkänd för | FCC/CE Class A Certified according till IEC60945 |
| Skyddsklass | IP40 |
| Dimensioner | |
| BxDxH | 228 x 211 x 85,7 mm |

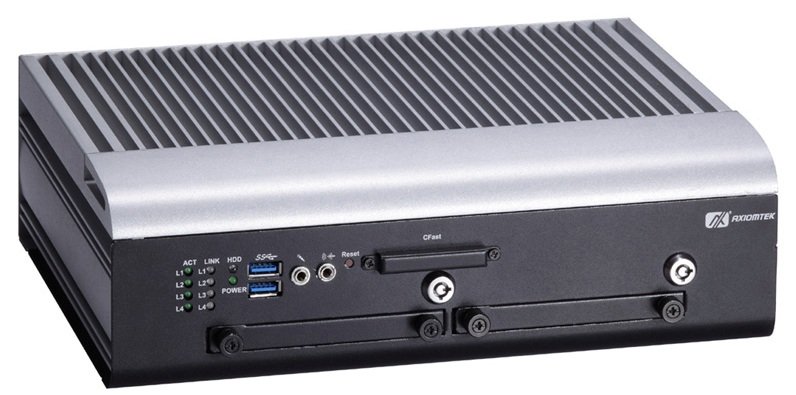

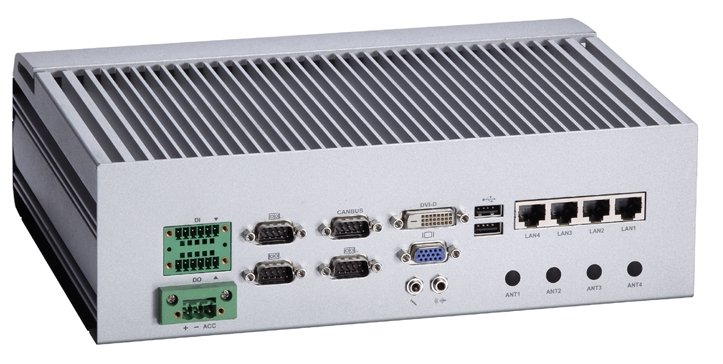

Box-PC, i3, 1,6Ghz, Marin
tBOX330, IEC60945 Maringodkänd fläktlös Box-PC med i3 processor
Beskrivning
