- CPU: ST ARM Cortex-M3 32 bit processor, 72MHz
- RAM: 64 K Bytes SRAM
- ROM: 256 K Bytes Flash ROM
- Ethernet:
- Port Typ RJ-45 Connector Speed
- 10 /100 M bps ( Auto Detecting )
- Mode :
- TCP Server / TCP Client / UDP Client / Virtual COM / Pairing
- Setup HTTP Browser Setup
- Security Setup Password
- Protection Built-in 1.5KV Magnetic Isolation
- Serial Port * 2 ports:
- Speed 300 bps~115.2 K bps
- Parity None , Odd , Even , Mark , Space
- Data Bit 7 , 8
- Stop Bit 1 , 2
- Port-1:
- RS-232 Pins : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
- Port-2:
- RS-422 Rx+ , Rx- , Tx+ , Tx- (Surge Protect)
- RS-485 Data+ , Data- (Surge Protect)Built –in RS-422/RS-485 pull high Resistor15KV ESD for all signals
- Watch Dog Function
- Power: DC 9 –24 V , 500mA , DC Jack
- Led Lamp: RX, TX, SYS
- Environment: Operating Temperature: -10°C ~ 70°C Storage Temperature : -20°C ~80°C
- Dimensions: 115 * 90 * 27 mm ( W * D * H )
- Weight: 140 gm

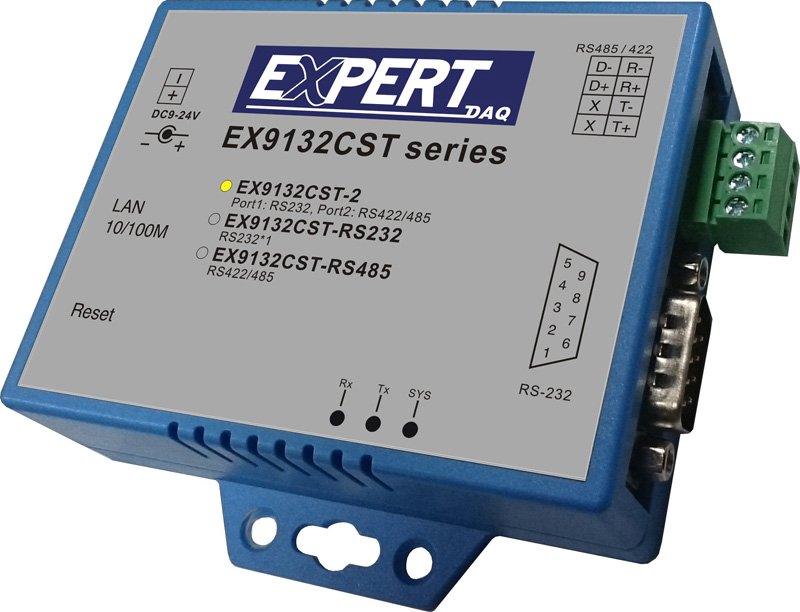

Seriell till Ethernet portserver
2-ports seriell till Ethernet konverter. Med DB9 och skrutilkopling på 485 och 422.
Artikelnr: EX-9132CST-2
Kategori: Port/Seriell-server
Beskrivning
Dokumentation
Dokumentation
Tillbehör
Inga tillbehör finns
