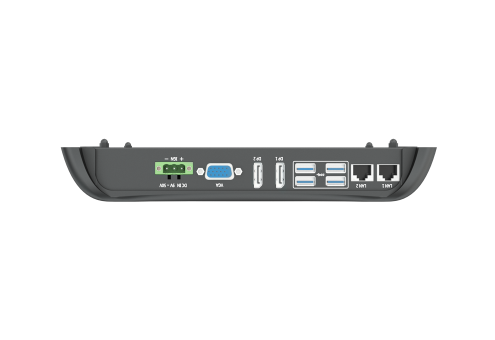

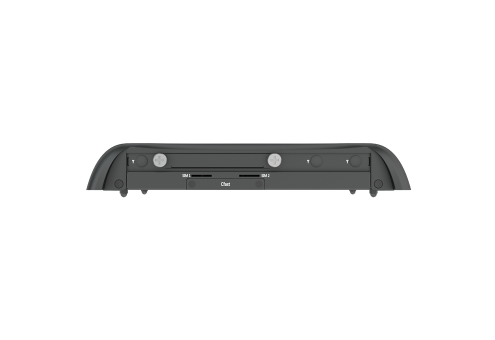

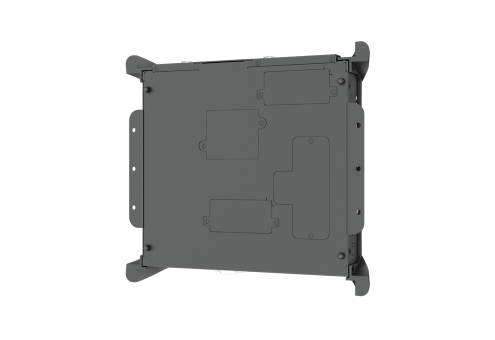

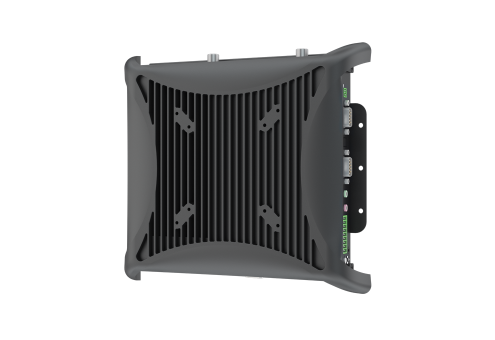

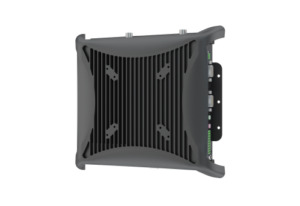

PC Module till VIO Display Intel i3-7100U, 8GB RAM/128GB SSD

PC Module till VIO Display med Kaby Lake-U i3-7100U CPU

Artikelnr: PC400-7100U Kategori:

Beskrivning

PC400-7100, PC Module för Industrial Display System

  • Intel® 7th Gen (Kaby Lake-U) Processor Core™  i3-7100U
  • 1x 260-pin DDR4 SODIMM. max up till 16GB
  • 1x 2.5” SATA HDD bay support RAID 0, 1
  • 1x mSATA (shared by 1x Mini PCIe),
  • 1x CFast (shared by 1x mSATA),
  • 2x SIM socket
  • 2x full-size mini PCIe for communication or expansion modules
  • 2x LAN
  • 1x DisplayPort, 1x Dual Channel 24 bit LVDS
  • 4x RS-232/422/485,
  • 4x USB 3.0, Audio
  • 8x DI + 8x DO with isolation
  • 9 till 50VDC wide range power input
  • -40°C till 70°C extended operating temperature
