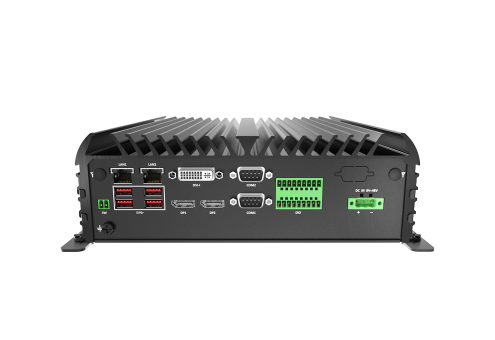

Box-PC, RCO-6100, i5-9500E, 16GB RAM, 256GB SSD

Kraftig Box-PC med 9. generationen i5 CPU

Artikelnr: RCO-6100_i5 Kategori:

Beskrivning

RCO-6100 Serie Box-PC med 9. generationen CPU

  • Intel® Q370 chipset
  • 2x DDR4 2400/2666Hz SODIMM. Max. up till 64GB
  • Triple Independent Display by 1x DVI-I and 2x DisplayPort
  • 2x Intel® GbE supporting Wake-on-LAN and PXE

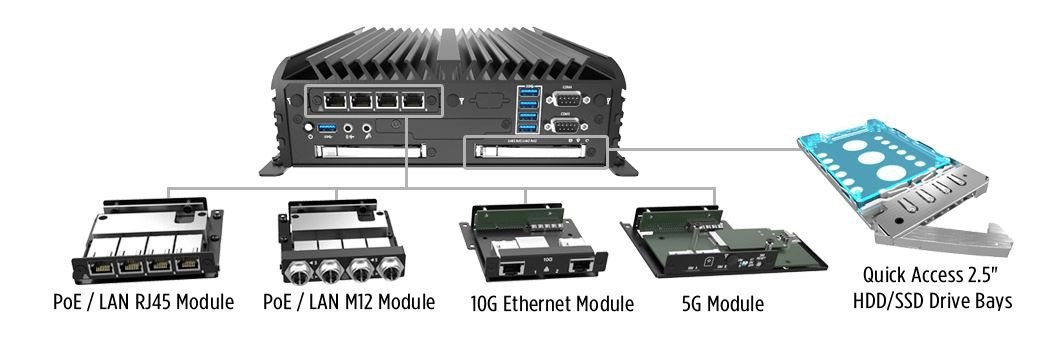

  • 2x Full-size mini PCIe for communication or expansion modules,
  • 2x SIM socket
  • 4x 2.5” SATA HDD Bay and 1x mSATA with RAID 0, 1, 5, 10 support
  • 1x M.2 (M Key, NVMe PCIe x4, 2280);
  • 1x M.2 (E Key, PCIe x2, USB 2.0, 2230)
  • 6x RS-232/422/485 (w/ 2x internal),
  • 4x USB 3.2 Gen 2, 5x USB 3.2 Gen 1
  • 9 till 48VDC Wide Range Power Input Supporting ATT/ATX Mode
  • Wide Operating Temperature -25°C till 70°C (35W CPU); -25°C till 60°C (65W CPU)
  • 1x PCIe x16, and 1x PCI Expansion (RCO-6122 Series)
  • TPM 2.0 Supported

Se datablad för ytterligere CPU valg.
