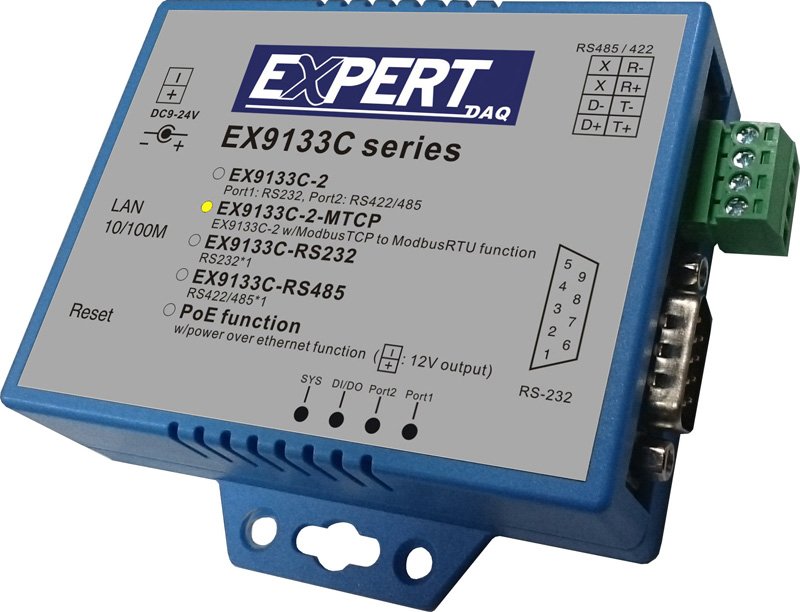

2 port RS232/RS485 till Ethernet Modbus gateway

2 port RS232/RS485 till Ethernet Modbus gateway

Artikelnr: EX-9133C-2-MTCP Kategori:

Beskrivning

  • CPU: 32-bit ARM-Cortex-M4 CPU, 120MHz( Max)
  • RAM: 128 K Bytes SRAM
  • ROM: 512 K Bytes Flash ROM
  • Ethernet:
    • Port Typ RJ-45 Connector
    • Speed 10 /100 M bps ( Auto Detecting )
    • Mode Modbus TCP Client/Server
    • Setup HTTP Browser Setup Security Setup Password Protection Built-in 1.5KV Magnetic Isolation

  • Protocol:
    • ModbusTCP till Modbus-RTU/ASII Slav
    • Modbus RTU/ASCII till ModbusTCP slav

  • Serial Port * 2 ports:
    • Speed 300 bps~115.2 K bps
    • Parity None , Odd , Even , Mark , Space
    • Data Bit 5 , 6 , 7 , 8
    • Stop Bit 1 , 2

  •  Port-1:
    • RS-232 Pins : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD

  • Port-2:
    • RS-422 Rx+ , Rx- , Tx+ , Tx- (Surge Protect) RS-485 Data+ , Data- (Surge Protect)Built –in RS-422/RS-485 pull high Resistor15KV ESD for all signals

  • Watch Dog Function
  • Power: DC 9 –24 V , 500mA , DC Jack
  • Led Lamp: SYS (PWR) , Port 1/2 , DI/DO
  • Environment: Operating Temperature: 0°C-70°C Storage Temperature : -10°C-80°C
  • Dimensions: 115 * 90 * 27 mm ( W * D * H )
  • Weight: 140 gm
