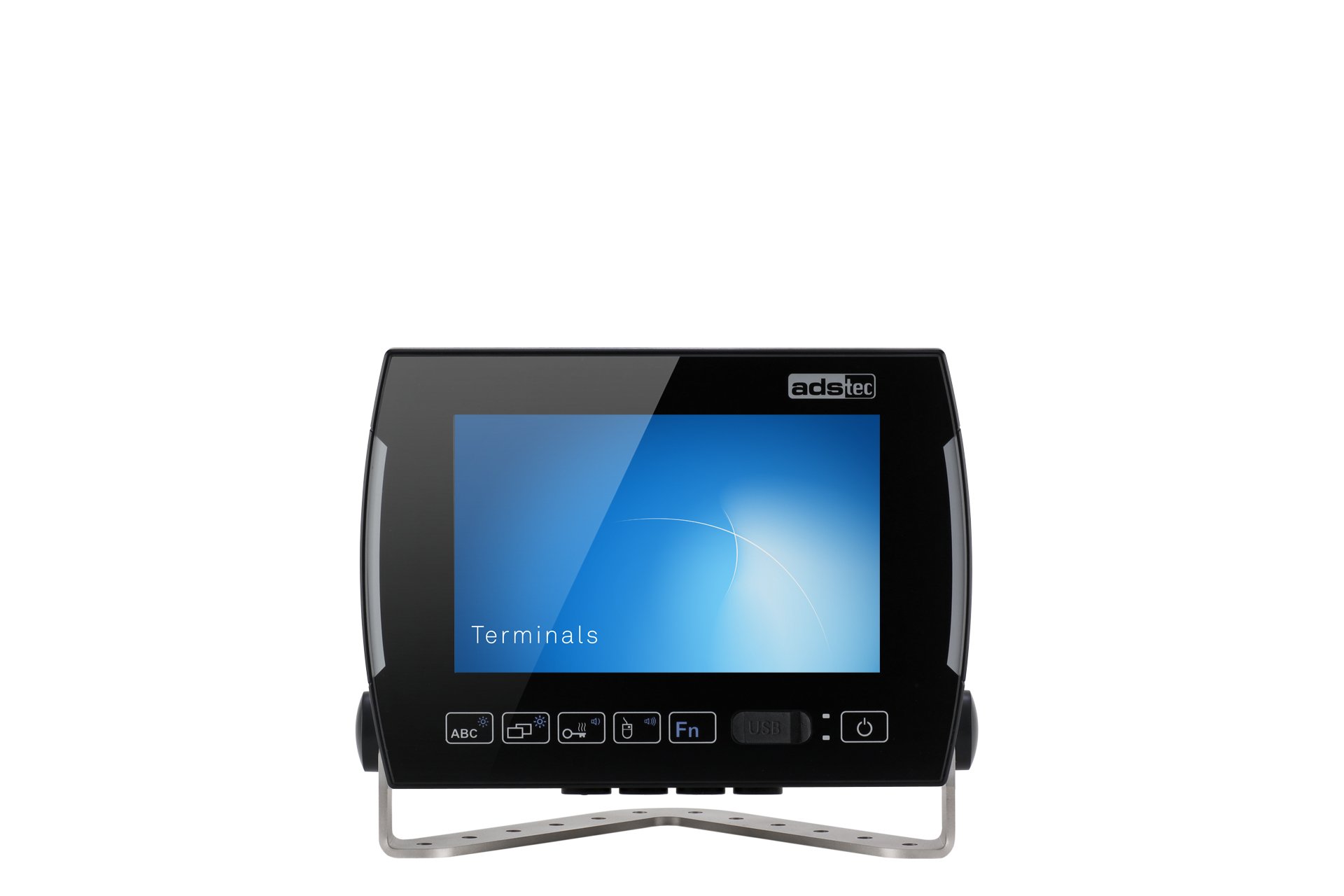

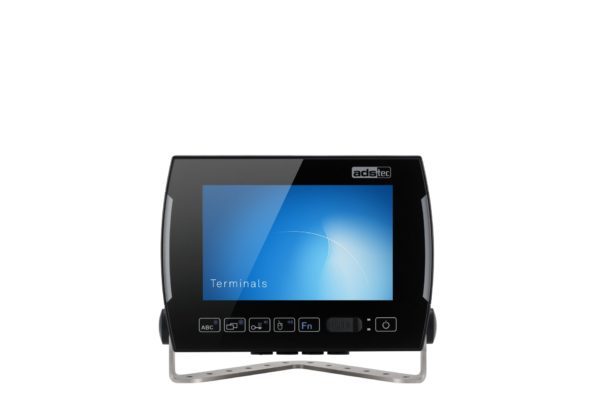

8″ Terminal PC

VMT8008

VMT8010

VMT8012

VMT8015

Bakplate/Ram

Powder coated aluminium

Frontpanel

Fibreglas / forsterket plastik

Skärm

8″ TFT

800 x 480 Pixel
16,1 Mio. colors att max

10,4″ LED

1024 x 768 Pixel
16,2 Mio. colors att max

12,1″ TFT

800 x 600 Pixel
256k colors att max

15″ TFT

1024 x 768 Pixel
16,2 Mio. colors att max

Automatic or manual display brightness adjustment

Pekskärm

PCAP Multi-Touch

Graphic minne

A max. of 8 MB shared memory

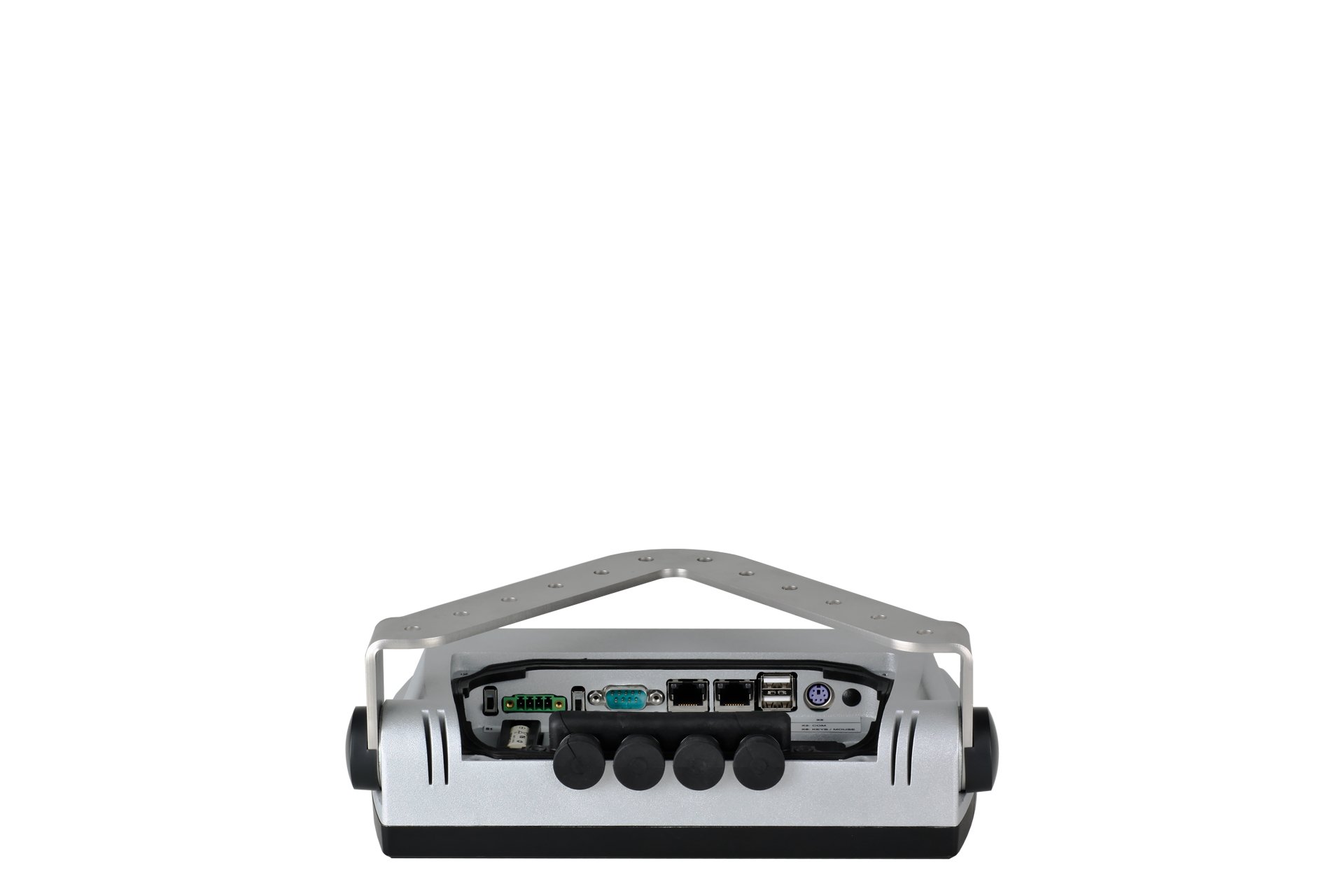

Gränssnitt

COM 1 (RS232)
1 x USB 2.0 in Front panel (disconnectable via software)
3 x USB 2.0
(All external USB interfaces are equipped as High Current typ interfaces for up till 1A) As an optiont: COM2 (RS232/485 or CAN)

Network

2 x Ethernet (10/100/1000MBit) RJ 45

Ljud

Ljud via till externe høylalere

Strömförsörjning

24 V DC ±20% (19 – 29 V)

IP klass

IP 65

Arbeidstemperatur

-20 – +55 °C

Mål(B x H x T)

259 x 187 x 60 mm

299 x 246 x 60 mm

344 x 266 x 57 mm

405 x 310 x 61 mm

Vikt

Ca. 2,2 kg

Ca. 3,1 kg

Ca. 3,5 kg

Ca. 4,5 kg

vibration resistance

DIN EN 60068-2-6

Shock resistance

DIN EN 60068-2-27

Fuktighet

>10 till 85% utan kondensering

Valgfrit tillbehör

Processor

Intel® Atom™ N2600 1.6 GHz (Dual Core)

Intel® Atom™ 1,75 GHz (Dual Core)

RAM

4 GB DDR3 RAM

Skärm

–

–

1024×768 Pixel
max. 256k

–

Alternativ lagring

2 x Flash SSD
(via internal USB connections)

1 x Flash SSD (via internal USB connection)
Alternative: 2.5″ automotive hard disk with a minimum of 40
GB (UDMA)**

Radio

Som option: Integrated WLAN 802.11 (a/b/g) module incl. diversity antennas
Som option: Connection for an external antenna

RFID

–

Som option: Mifare® reader 13.56 MHz for ISO 14443 A,
Mifare® class and Mifare® PRO boards

Interfaces

Keyboardsimulator

Operativsystem

Windows® CE 6.0
Windows® XP embedded
or embedded Linux as a platform fot terminal solutions based on Flash SSD

Windows® XP embedded DE on 2 GB Flash
Windows® CE 6.0 on 1 GB Flash
Windows® XP Professional DE on hard disk
Linux Ubuntu on hard disk
